Adaptor Plates

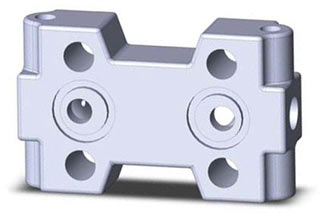

Adaptor Plate: Stablized Connector Side

Adaptor Plate: Stabilized Connector Side, Adapter Plate

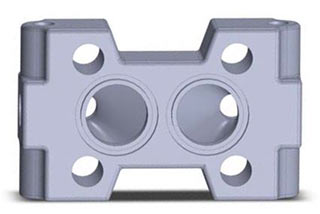

Adaptor Plate: Transmitter Side

Adaptor Plate: Transmitter Side, Adapter Plate

Part Number: TM-101704

Specifications

Body Materials: 316SS ASTM A182
Hardware Materials: 316SS
Gasket Materials: RTFE

Dimensions

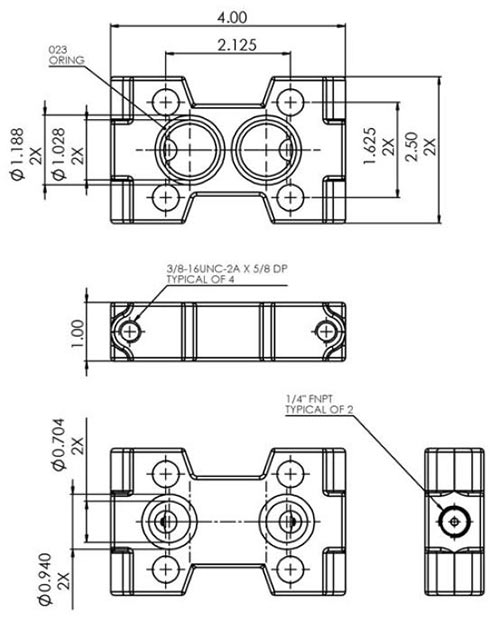

Adaptor Plates Dimensions (Adapter Plates Dimensions)
