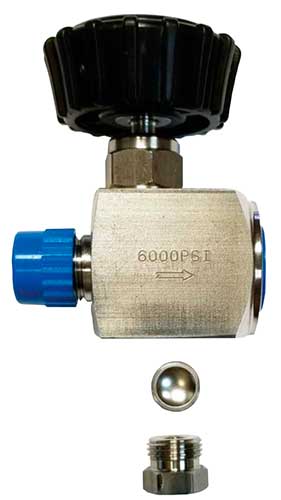

Cylinder Valve-Rupture Disc Combo

Characteristics

  • Compact Construction
  • Incorporated the cylinder valve and rupture disc in a single housing
  • Designed to retrofit to most rupture disc bodies

Features

  • Body Material: 316L
  • Retainer Material: 316L
  • Seat: Teflon
  • Spring: S.S.
  • Burst Pressure: 1,800 psi
  • 1/4" FNPT Outlet

Notes:

  • Do not use a rupture disc in a location where the sudden release of the material would pose a hazard.
  • The burst pressure is marked on the top of the disc retainer. Do not subsitute any other burst disc. A DeTec disc must be used.
  • Make certain there is an isolation valve between the system being sampled and the rupture disc assembly. This is necessary so the system can be closed if the disc bursts.
  • Expansion of liquified gases due to small temperature changes may cause a rupture disc to release the cylinder contents. Appropriate regulations and guidelines should be followed to establish safe filling limits.

Inline Mounting

Part Numbers:

DVM-1750-A-MXF

1/4" FNPT Male x Female

Cylinder Valve Rupture Disc Combo

Part Numbers:

DVM-1750-A-M

1/4" NPT Male x Male

Cylinder Valve Rupture Disc Combo

Cylinder Valve Rupture Disc Combo Dimensions
