DOT 3E Cylinder - Relief Valves

Characteristics

  • Compact Construction
  • Designed to be mounted in line between a cylinder and a mini valve
  • Designed to retrofit to most rupture disc bodies

Features

  • Body Material: 316L
  • Retainer Material: 316L
  • Seat: Delrin
  • Spring : S.S.
  • Set Point: Adjustible - 1500 psi to 2500 psi
  • 1/4" FNPT Outlet

DOT 3E Cylinder - Relief Valves Side View

Notes:

  • Do not use a relief valve in a location where the sudden release of the material would pose a hazard.
  • Make certain there is an isolation valve between the system being sampled and the relief valve assembly. This is necessary so the system can be closed if the disc bursts.
  • Expansion of liquified gases due to small temperature changes may cause a rupture disc to release the cylinder contents. Appropriate regulations and guidelines should be followed to establish safe filling limits.

Inline Mounting

Part Numbers:

RVA-1750-A-MXF

1/4" FNPT Male x Female

RVA-1750-A-M

1/4" NPT Male x Male

RVA-1750-A-F

1/4" NPT Female x Female

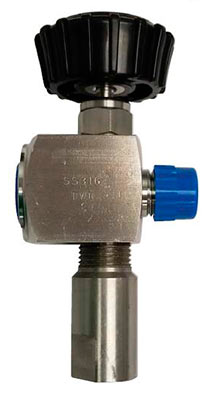

DOT 3E Cylinder - Relief Valves

Part Numbers:

RVM-1750-A-MXF

1/4" FNPT Male x Female

RVM-1750-A-M

1/4" NPT Male x Male

RVM-1750-A-F

1/4" NPT Female x Female

DOT 3E Cylinder - Relief Valves

Part Numbers:

RV-1750-A-MXF

1/4" FNPT Male x Female

RV-1750-A-M

1/4" NPT Male x Male

RV-1750-A-F

1/4" NPT Female x Female

DOT 3E Cylinder - Relief Valves

Part No. RV-1750-A

5/8"-18 UNF-2A

Connection Fits Most Holders
