Gas Sampling Systems
DOT 3E & SP-16195
316 Stainless steel Sample Cylinders (1800 psi)

Characteristics

Internal neck formed for easy cleaning
Heavy wall neck to prevent splitting and flaring

Features

Body made of seamless stainless steel tubing
Aircraft quality NPT threads
Sizes range from 40 to 1000 cc
Working pressures to 1,800 psi
316L stainless steel
Monel 400 available

Specifications

Manufactured to DOT requirements 49 CFR Part 178
All DOT-3E cylinders are hydrostatically test to 5/3x working pressure. Certificates of testing data are available for a nominal fee.
One sample cylinder of each lot or one of every 500 sampling cylinders is burst tested, which ever is the smaller number.
1000 cc Cylinders are manufactured under SP-16195

SULFINERT® COATING AVAILABLE

Mini Valve Cylinder - Rupture Disc Outage Tube

Mini Valve Cylinder - Rupture Disc with Outage Tube

See DOT 3E & SP-16195 - 316 Stainless Steel Cylinders Dimensions

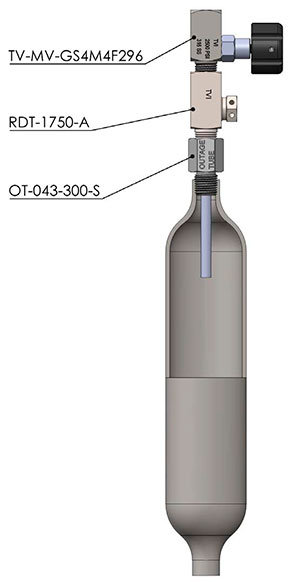

Cylinder Assembly with Outage Tube, Rupture Disc Assembly and Sample Valves

DOT 3E & SP-16195 - 316 Stainless Steel Cylinders - 1800 psi

DOT 3E & SP-16195 - 316 Stainless Steel Cylinders - 1800 psi

DOT 3E & SP-16195 - 316 Stainless Steel Cylinders - 1800 psi

DOT 3E & SP-16195 - 316 Stainless Steel Cylinders (1800 psi)

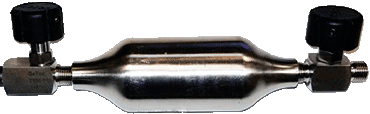

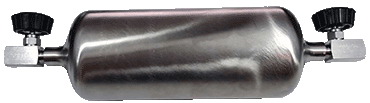

Spun and 316 Stainless Steel Cylinder - Sample Cylinders

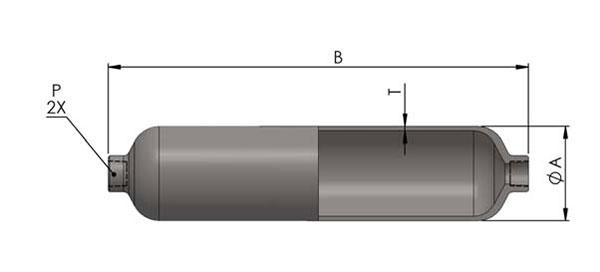

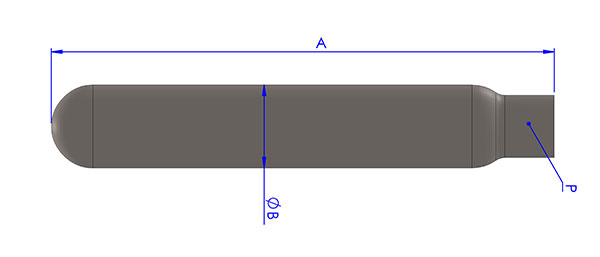

Dot 3E & SP-16195 Cylinder Dimensions (1,800 psi)

Part No.	Specification	Internal Volume (cc± 5%)	Dimensions (Inches) A	Dimensions (Inches) B	Dimensions (Inches) T	NPT Thread P	Pressure Rating	Weight (lb)
TS-SSC-1.8K-40-S	DOT-3E	50	1.50	3.75	0.070	1/8"	1,800 psi	0.4
TS-SSC-1.8K-50-S	DOT-3E	50	1.50	3.75	0.093	1/4"	1,800 psi	0.4
TS-SSCA-1.8K-50-S	DOT-3E	50	1.00	6.06	0.065	1/4"	1,800 psi	0.4
TS-SSC-1.8K-75-S	DOT-3E	75	1.50	4.94	0.093	1/4"	1,800 psi	0.5
TS-SSC-1.8K-150-S	DOT-3E	150	1.98	5.25	0.093	1/4"	1,800 psi	0.9
TS-SSC-1.8K-300-S*	DOT-3E	300	1.98	9.50	0.093	1/4"	1,800 psi	1.8
TS-SSC-1.8K-400-S	DOT-3E	400	1.98	12.00	0.093	1/4"	1,800 psi	2.3
TS-SSC-1.8K-500-S*	DOT-3E	500	1.98	15.00	0.093	1/4"	1,800 psi	2.8
TS-SSC-1.8K-1000-S	DOT-SP-16195	1000	3.56	10.80	0.206	1/4"	1,800 psi	6.5
TS-SSCA-1.8K-1000-S	DOT-SP-16195	1000	3.56	10.80	0.206	1/2"	1,800 psi	6.5
TS-SSC-1.8K-2250-S		2250	4.00	16.00	0.093	1/4"	1,800 psi	11.3
TS-SSC-1.8K-3785-S		1 Gal (3785cc)	4.00	25.50	0.209	1/4"	1,800 psi	18.6

* Replace the S with an M for Monel 400

See Sulfinert® Sample Cylinders

(TVI stocks 300 & 500 cc Sizes)
